Mortice lock with gears for upright Cisa 49225
Mortice lock with gears for upright Cisa 49225
Mortice lock with gears for upright Cisa 49225
Mortice lock with gears for upright Cisa 49225

Mortice lock with gears for upright Cisa 49225

Reference:
1.49225.25.0

Features:

  • Drive device via gear system
  • Box thickness 15.5 mm
  • Anti-flare system
  • Die-cast metal box with zinc coating dimensions: height 247 mm, depth 50 mm, width 15.5 mm
  • Backset(E) 25 - 30 - 35 - 40 mm
  • Adjustable latch from 11 to 17 mm, interchangeable with the roller
  • Nickel-plated latch and deadbolt
  • Dimensions stainless steel front: height 290 mm, width 22 mm, thickness 3 mm
  • Square handle 8 mm for the activation of the referrals

Supplied accessories:

  • Pair of nylon studs art. 1.06012.01.0
  • Pair of nylon underfront shims art. 1.06141.65.0
  • Threaded pins for fixing the extensions
  • Lock and cylinder fixing screw

Measures looks image.

€33.84
33,84 € tax excl.
Backset
Available in stock 1 Items
Ask a question (0)
Add to wishlist
Cisa
Product Details
1.49225.25.0
Made IN
Italy

Specific References

ts_reference
CISA149225250
ean13
8015345995999
You may also like
Mortice lock Multitop PRO RC for upright Cisa 49225 RC Mortice lock Multitop PRO RC for upright Cisa 49225 RC

€36.00
36,00 € tax excl.
Features: It can easily be retrofitted to earlier models of Multitop range Case thickness 15.5 mm Closed case Backsets (E) 25-30-35-40 mm Latchbolt interchangeable with roller Steel cover Top and bottom...
other products in the same category:
Cisa 57260 4 throws lock to insert

€87.12
87,12 € tax excl.
Triple locking mortise lock with 4 principals, latch and deadbolt with 4 pistons, striking plate supplied Entry : 60 Wheelbase : 85 Front : 25 -AUCTIONS NOT INCLUDED CHARACTERISTICS Front and...
Cisa aluminium lock to insert 45010

€17.21
17,21 € tax excl.
Mortise lock for uprights with oval cylinder, 16 mm backset Technical features: - Zinc coated box with dimensions: height 100 mm, depth 40 mm and width 14 mm. - Front with zinc coating dimensions: height 158...
Dierre DOUBLE-bitted rim lock for armored doors inlet 70 mm

€9.51
9,51 € tax excl.
Vertical rim lock, 2 throw, with bolt and latch for door. Available (B): 60 - 70 - 80 mm Entrata chiave (A): 35 - 45 - 55 mm Available lock: Right - Left  Material: Steel Finish: Brown Measures looks image.
Viro pair of left and right side roller shutter locks with symmetric profile keys

€18.76
18,76 € tax excl.
CHARACTERISTICS: Pair of locks with detached pegs, straight deadbolts and cylinder protrusion 9 mm. The 8230 series locks are interchangeable with the most common roller shutter locks already installed. The...
Assa Abloy Electric strike to be applied 500

€51.56
51,56 € tax excl.
Electric strike to be applied, series 500, wood locks RIGHT hand code 500/5, power supply 12 V LEFT hand code 500/6, power supply 12 V FEATURES:  To combine with mechanical rim locks Right and left
Prefer 6754.0804 mortise lock for metal door

€33.40
33,40 € tax excl.
Application: for metal transit doors. Operation: handle -operated spring latch, locks from inside and outside with key. Finish: brass cylinder, galvanized case. Round spring latch (2 keys supplied), B= 11 mm Closing...
EMKA 1034-U1 Snap lock galvanized steel

€15.57
15,57 € tax excl.
Snap lock in galvanized steel, tongue and square in rough zamak, spring in galvanized steel.Door version: right, leftType of blocking system: block-blockmaterial: steelSurface and color: galvanizedInstallation...
Mortice lock Multitop PRO RC for upright Cisa 49225 RC

€36.00
36,00 € tax excl.
Features: It can easily be retrofitted to earlier models of Multitop range Case thickness 15.5 mm Closed case Backsets (E) 25-30-35-40 mm Latchbolt interchangeable with roller Steel cover Top and bottom...

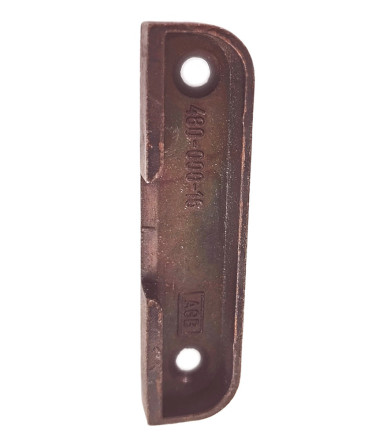

Striking plate with rounded edge 3 mm thick AGB
