Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel
Hinge with 3.5 mm overlay and joint for thin door and panel

Hinge with 3.5 mm overlay and joint for thin door and panel

Reference:
344.75.760

Features:

  • Die-cast zinc construction
  • Nickel-plated color/finish
  • Opening angle 240°
  • Application for thin doors, laminated panels (HPL)
  • Corner assembly with side thickness 10 mm
  • Intermediate assembly with side thickness 13 mm
  • Door thickness 10 to 13 mm
  • Door setback 0 mm for opening angle of 140°
  • Roller diameter 5 mm
  • Roller length 47 mm
  • Clearance 6 mm
  • Adjustment: Lateral 1 mm, height adjustment minus 2 to 2 mm, height adjustment in the cage element via eccentric, depth adjustment through slotted holes in the bracket with legs

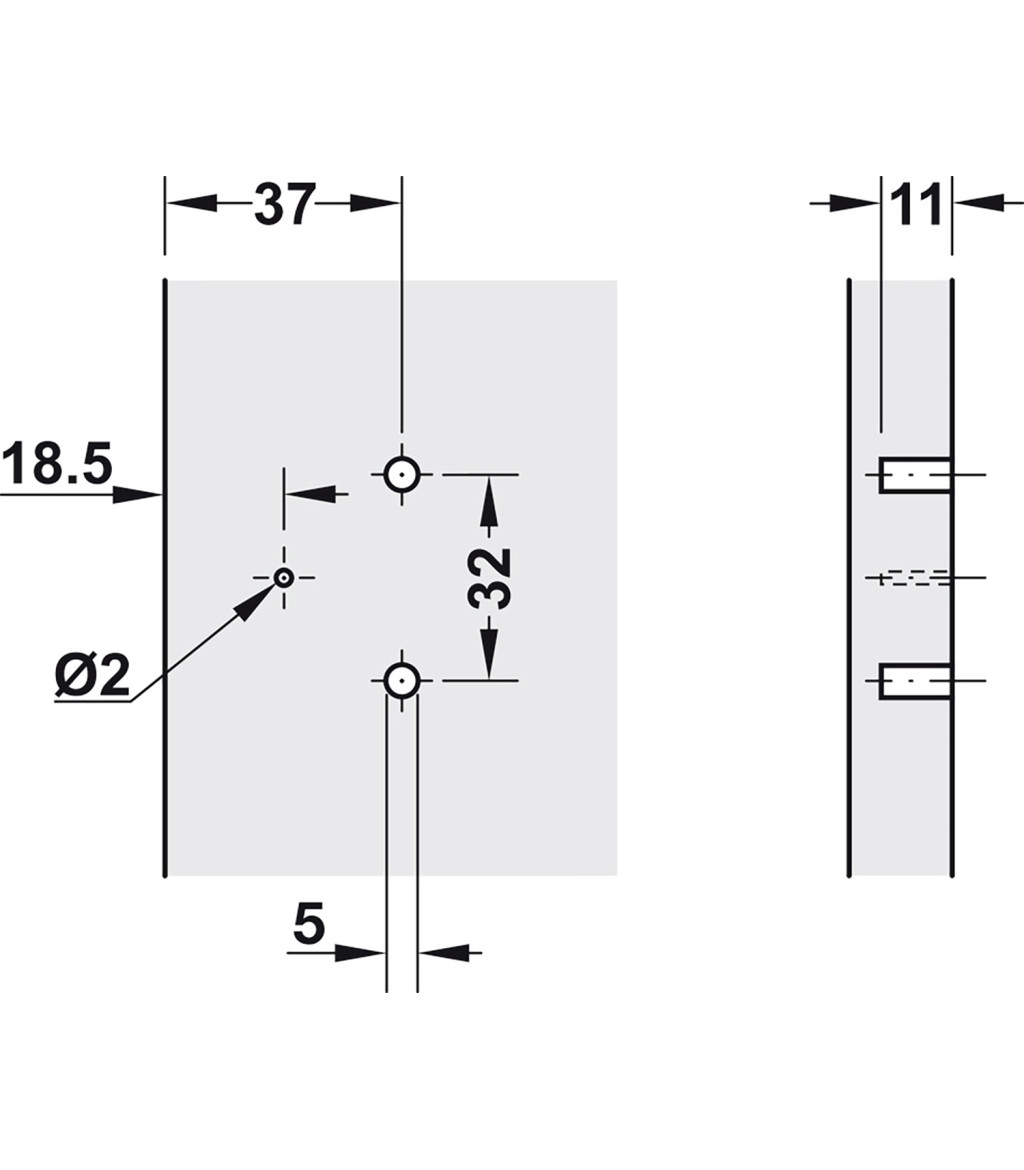

Measures looks image.

€22.95
22,95 € tax excl.
Available In Stock 2 Items
Ask a question (0)
 Calculate Shipping Cost
Add to wishlist
HAFELE
Product Details
344.75.760
Made IN
Germany
GPSR
Manufacturer
HAFELE
HAFELE
+39036257741
Via della Valle 67 bis
20841 Carate Brianza
Italy
info@hafele.it
